Flight Control
F722 Flight Control
MCU：STM32F722
GYRO：ICM42688P
OSD：AT7456E
Barometer：SPL06
Blackbox：128M Memory
Uarts：5 Set
ESC Signal：8 Set
BEC 5V：2.2A
BEC 12V：2.2A
TVS Protection：Yes
Input：3~6S (3~8S version also available)
Software：Betaflight
Mounting：30.5*30.5mm/M3
Size：37*37mm
F405 Flight Control
MCU：STM32F405
GYRO：ICM42688P
OSD：AT7456E
Barometer：SPL06
Blackbox：16M Memory
Uarts：5 Set
ESC Signal：8 Set
BEC 5V：2.2A
BEC 12V：2.2A
TVS Protection：Yes
Input：3~6S (3~8S version also available)
Software：Betaflight
Mounting：30.5*30.5mm/M3
Size：37*37mm

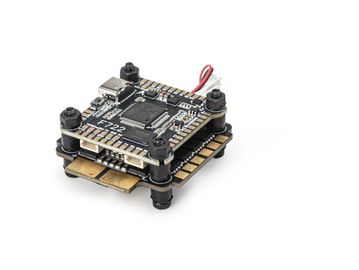

F722 Flight Stack
FC Parameter
MCU：STM32F722
GYRO：ICM42688P
OSD：AT7456E
Barometer：SPL06
Blackbox：128M Memory
Uarts：5 Set
ESC Signal：8 Set
BEC 5V：2.2A
BEC 12V：2.2A
TVS Protection：Yes
Input：3~6S (3~8S version also available)
Software：Betaflight
Mounting：30.5*30.5mm/M3
Size：37*37mm
ESC Parameter
CURR：Yes
Current：60A
Peak Current：70A
Input：3~6S (3~8S version also available)
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot
150/300/600/MultiShot
Mounting：30.5*30.5mm/M3
Size：43*48.8mm

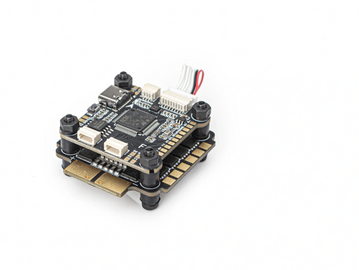

F405 Flight Stack
FC Parameter
MCU：STM32F405
GYRO：ICM42688P
OSD：AT7456E
Barometer：SPL06
Blackbox：16M Memory
Uarts：5 Set
ESC Signal：8 Set
BEC 5V：2.2A
BEC 12V：2.2A
TVS Protection：Yes
Input：3~6S (3~8S version also available)
Software：Betaflight
Mounting：30.5*30.5mm/M3
Size：37*37mm
ESC Parameter
CURR：Yes
Current：60A
Peak Current：70A
Input：3~6S (3~8S version also available)
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot
150/300/600/MultiShot
Mounting：30.5*30.5mm/M3
Size：43*48.8mm
