ESC
BLS 12S 100A SINGLE ESC
Product Name: BLS 12S 100A SINGLE ESC
Firmware: Bluejay/JH-30
Input Voltage: 4-12S
Constant current: 60-100A
Burst current: 120A
Peak power: 5000W
Supports:dshot300/dshot600
PCB board:6layer/2oz
Size: 48.3*66.6
VESC 12S 100A SINGLE ESC
Product Name: VESC 12S 100A SINGLE ESC
Firmware: VESC_mk5/HD60
Input Voltage: 4-12S
Constant current: 60-100A
Burst current: 150A
Peak power: 5000W
Current sensor:INA240
Telemetry: UART/CAN
Supports: PPM/Analog(ADC)/UART/CAN/USB
PCB board:6layer/2oz
Size: 48.3*66.6
BLS 120A SINGLE ESC
Current meter：Yes
Continuous Current：120A
Peak Current：140A
Input：3~8S
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot 150/300/600/MultiShot
Mounting：None
Size：28*58mm
AM32 80A SINGLE ESC
Current meter：Yes
Telemetery：Yes
Continuous Current：80A
Peak Current：100A
Input：4~8S Lipo
Firmware：AM32/HF32
Protocol：PWM/DShot 300/600
Variable PWM frequency：Yes
Mounting：None
Size：24*37mm
AM32 100A SINGLE ESC
Current meter：Yes
Continuous Current：100A
Peak Current：120A
Input：4~8S/4~12SLipo
Firmware：AM32
Protocol：PWM/DShot 300/600
Variable PWM frequency:Yes
Mounting：None
Size：32*45mm
BLS 100A 4IN1 ESC
Current meter：Yes
Continuous Current：100A
Peak Current：120A
Input：3~8S
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot
150/300/600/MultiShot
Mounting：30.5*30.5mm/M3
Size：89*100mm

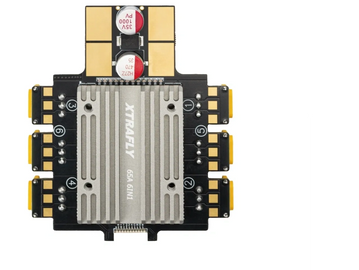

BLS 65A 6IN1 ESC
Current meter：Yes
Continuous Current：65A
Peak Current：75A
Input：3~8S
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot
150/300/600/MultiShot
Mounting：30.5*30.5mm/M3
Size：74*92.8mm
AM32 80A 4IN1 ESC
Current meter：Yes
Telemetery：Yes
Continuous Current：80A
Peak Current：100A
Input：3~8S Lipo
Firmware：AM32
Protocol：PWM/DShot 300/600
Mounting：30.5*30.5mm/M3
Size：63*57mm
BLS 65A 4IN1 ESC
Current meter：Yes
Continuous Current：60A
Peak Current：70A
Input：3~8S
Firmware：BLHeLi_S/Bluejay
Protocol：PWM/Oneshot/DShot
150/300/600/MultiShot
Mounting：30.5*30.5mm/M3
Size：43*48.8mm
